Tamiya田宮 #84205
碳纖維底盤/軸傳動 競技級甩尾底盤組

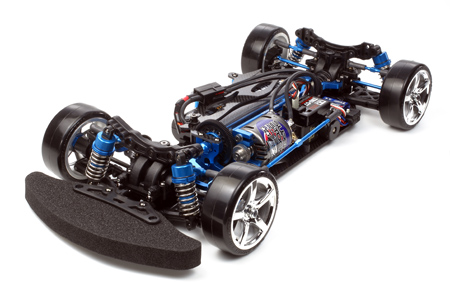

RC TB03VDS Chassis Kit - TB03VDS Drift Spec
The Tamiya belt-driven TA05-VDF Drift Chassis Kit proved to be a huge success amongst R/C Drift enthusiasts. With the knowledge gained from the TA-05 VDF, Tamiya has developed the TB-03 VDS top-spec drift chassis kit which offers the direct response of a Shaft-Driven 4WD system.
Specs and Features
- Equipped with the TB-03's front and rear gearboxes
- 2.5mm thick carbon fiber lower deck
- Aluminum center F/R gearbox braces which offer superior chassis strength
- Chassis layout is optimized for drifting and features a 2-piece propeller shaft along the center line of the chassis with the battery pack, motor and R/C radio gear positioned on either side of the car
- 4-wheel double wishbone suspension is equipped with the short reversible suspension arms as seen on the TB-03, TA-05 Version 2 and TRF 416,417
- TRF (Tamiya Racing Factory) Aluminum threaded shock body and Teflon piston dampers included
- A parallel geometry steering system with left and right symmetrical steering angles offers excellent control and easier counter steering maneuvers
- Front ball diff and rear direct coupling (spool)
- 2-piece universal propeller shaft
- Aluminum turnbuckle shafts
- Front and Rear universal shafts
- Aluminum hex wheel hubs
- Hi-torque servo saver included
- Steel diff joints for improved wear and durability
- 53842 TA05 Stabilizer Set (F & R)
- 54098 TB-03 Carbon Reinforced A Parts (Gear Case)
- 54122 TB-03 Carbon Damper Stay (Rear)
- 54124 TB-03D Carbon Damper Stay (Front)
- 54137 TB-03D Aluminum Rear Upright (1�)
- 54146 TB-03 Aluminum Damper Stay Mount
- 54064-74 TB-03 Aluminum Suspension Mounts
- 54171-75 TA05 ver.II Separated Suspension Mounts
Note: Body, tires, wheels, motor, pinion gear, and R/C gear sold separately
*馬達、車殼、電子設備 須另購
此商品為套件 須自行組裝
